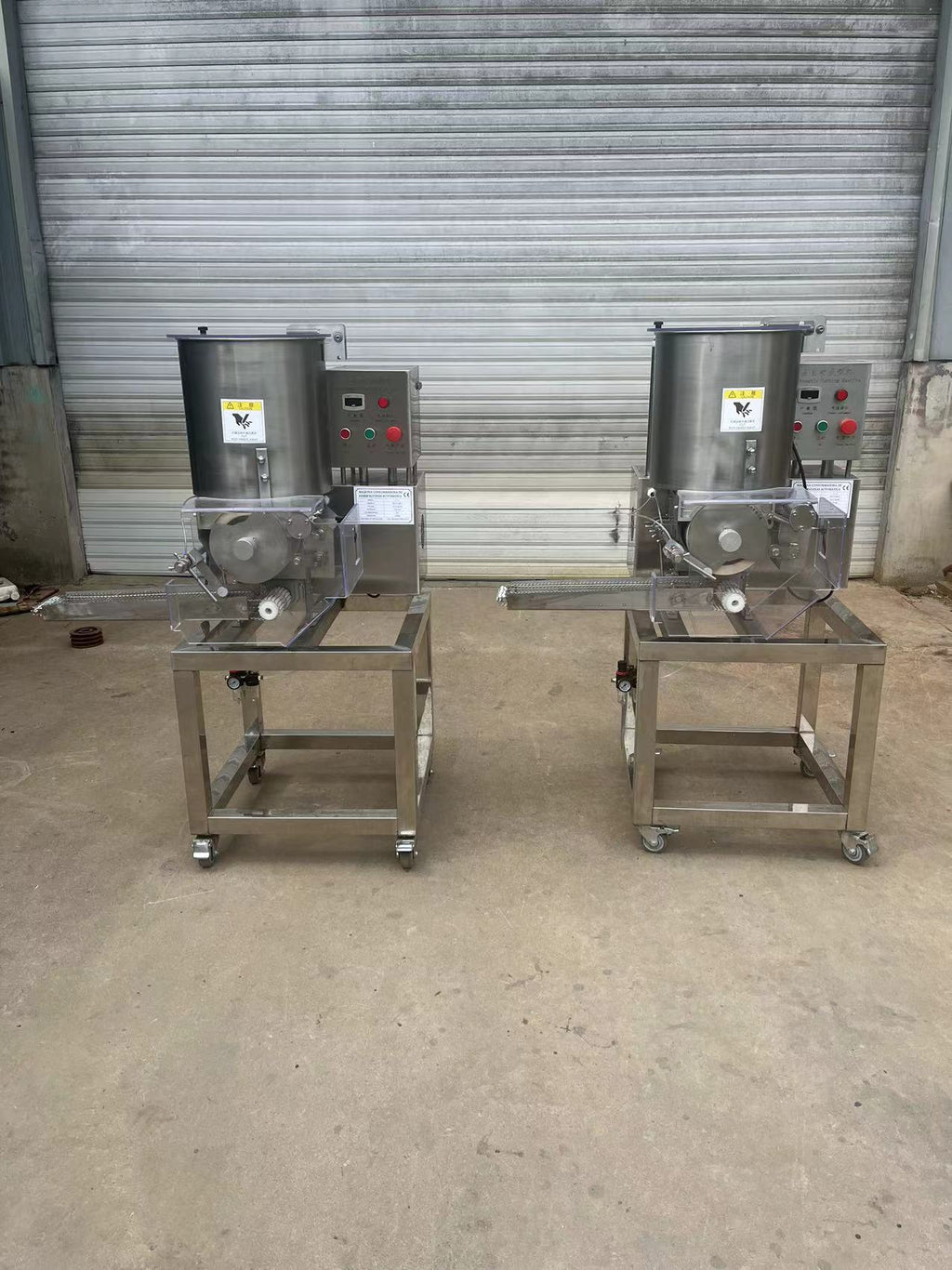

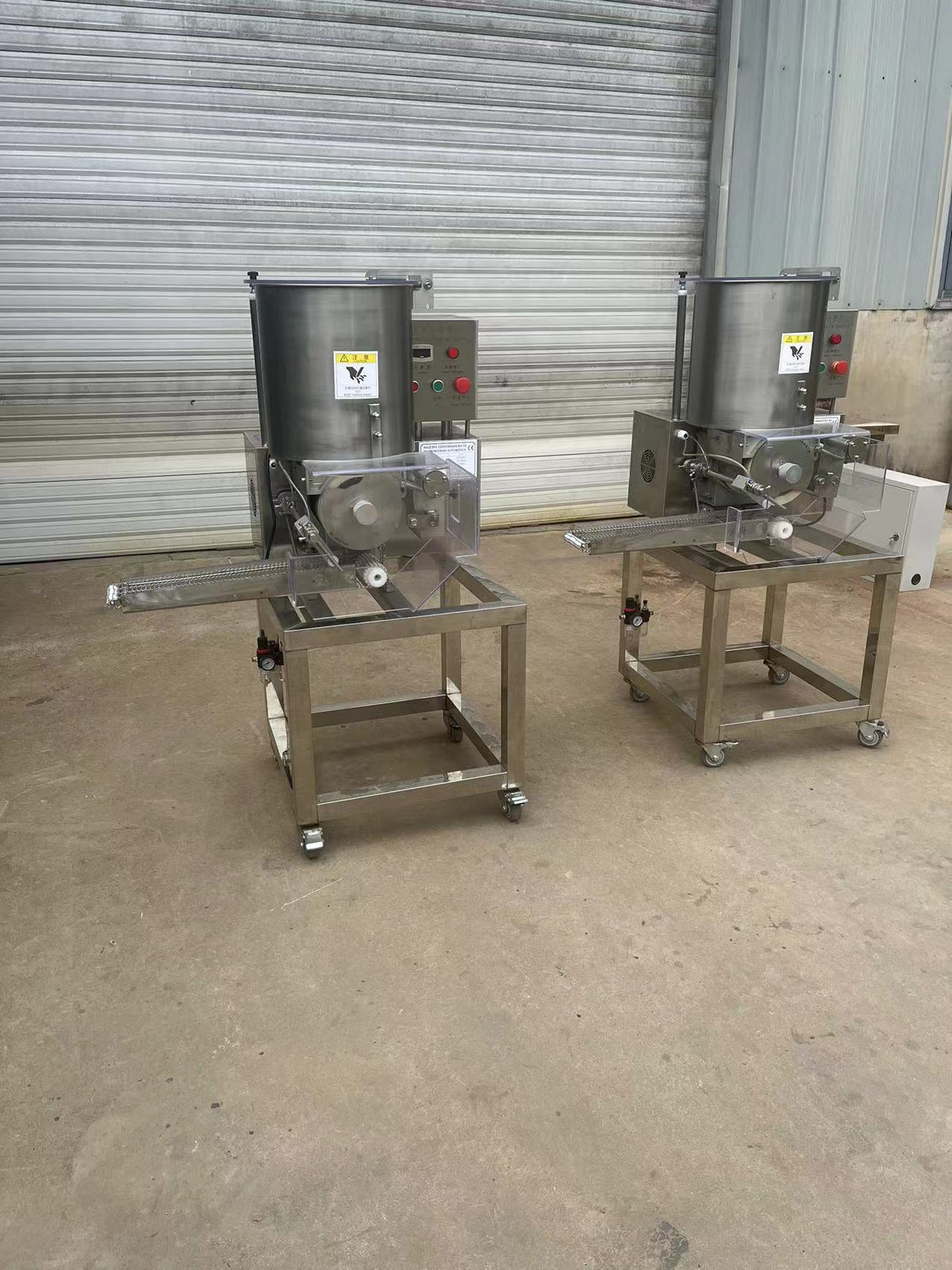

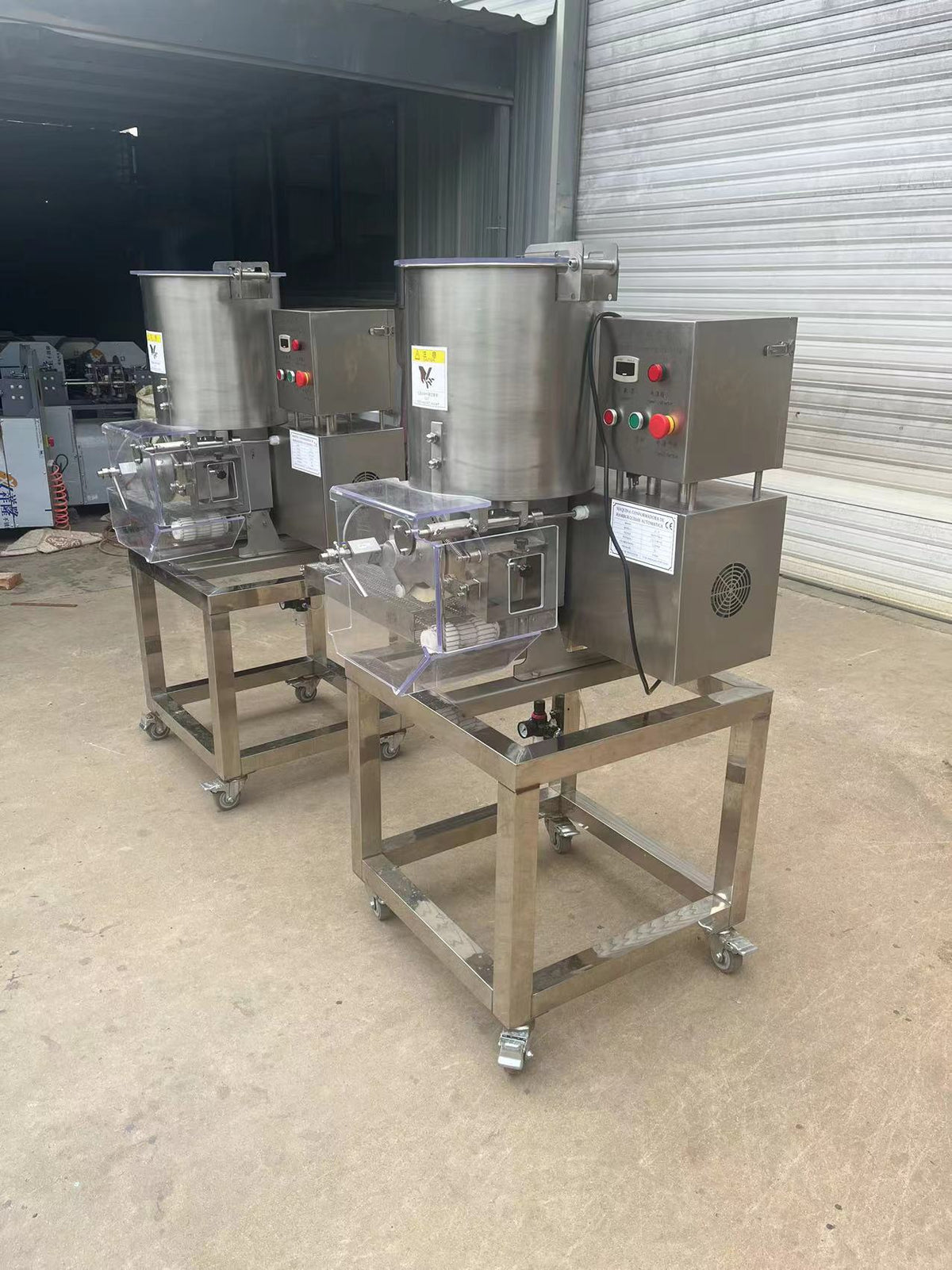

KONBRIT KBHB-100 Automatic Hamburger Patty Forming Machine

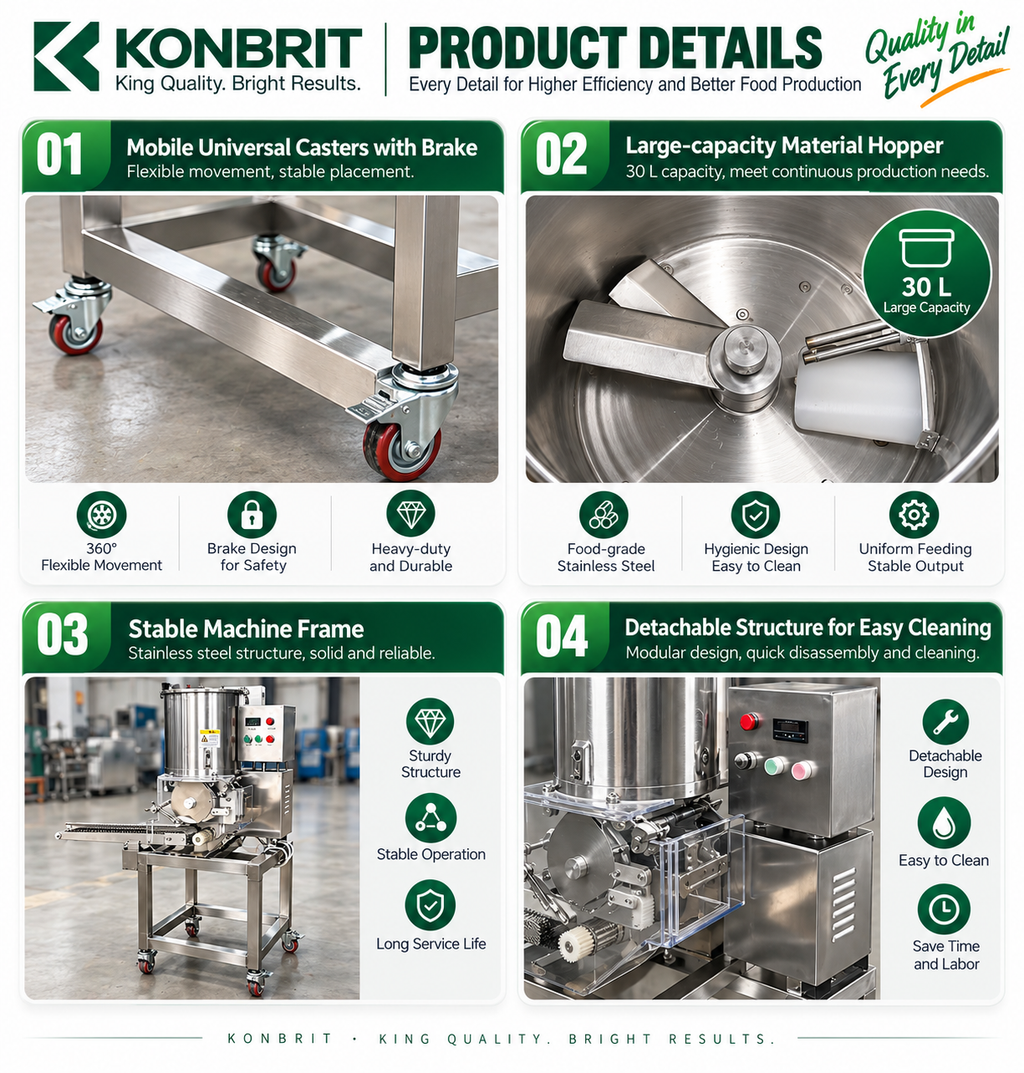

Prepare uniform hamburger patties and other formed foods with the KBHB-100. Its 30 L hopper, interchangeable forming molds and conveyor discharge support repeatable production in restaurants, central kitchens and food-processing businesses.
Key Features
- Consistent output: rated production capacity of 35 pieces per minute.
- Adjustable sizes: patty diameters of 28–120 mm and thicknesses of 8–20 mm, depending on the installed mold.
- Versatile forming: different molds support round, square, oval and other shapes. Confirm the required molds before ordering.
- Food-contact construction: 304 stainless-steel food-contact parts, as specified in the supplied product materials.
- Convenient controls: start/stop controls, adjustable speed and emergency stop.
- Conveyor discharge: 130 mm mesh belt for transferring formed products to the next processing step.
- Easy maintenance: removable forming components and a wheeled frame with brakes.

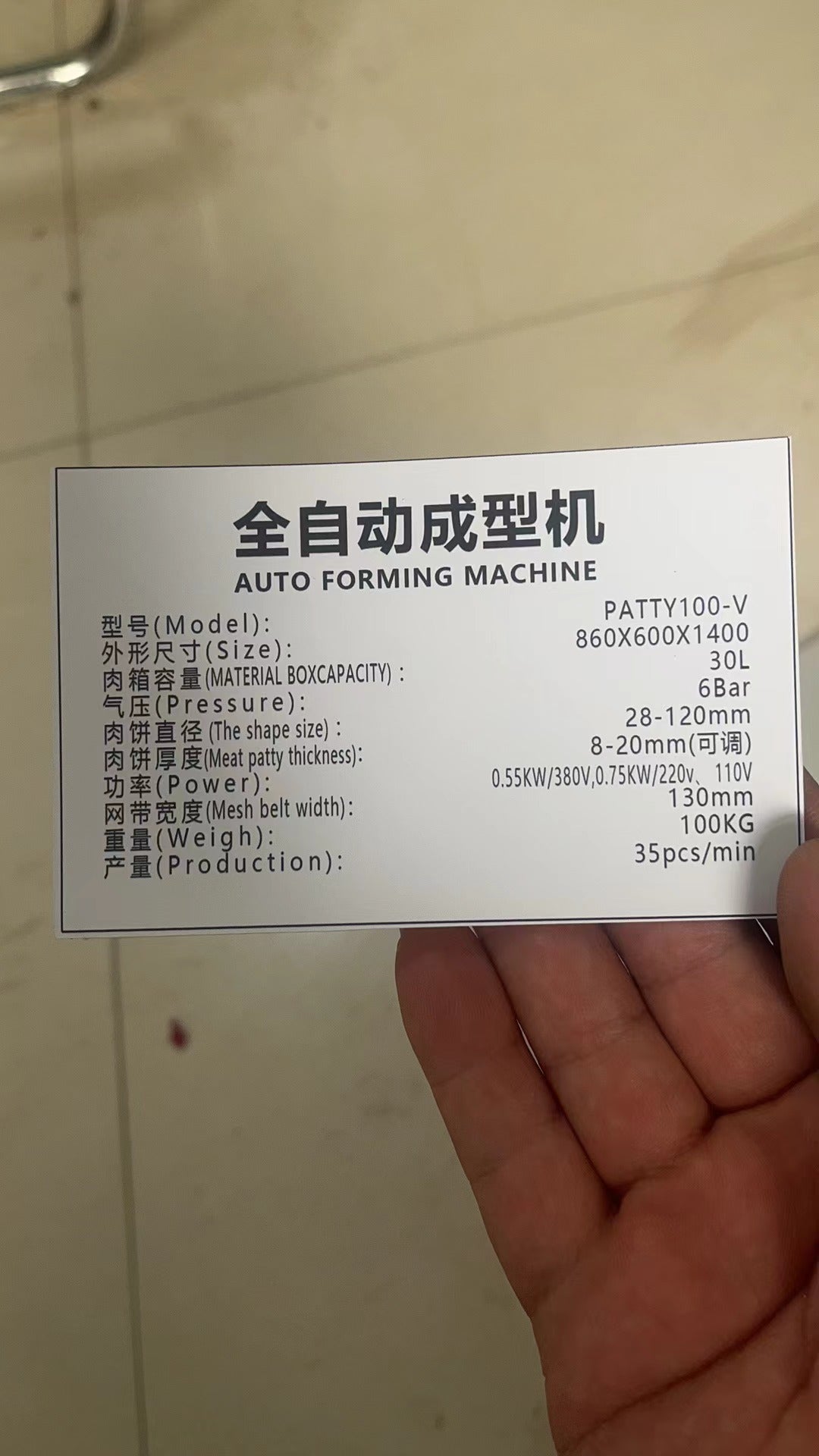

Technical Specifications
| Model | KBHB-100 |
|---|---|
| Production capacity | 35 pcs/min |

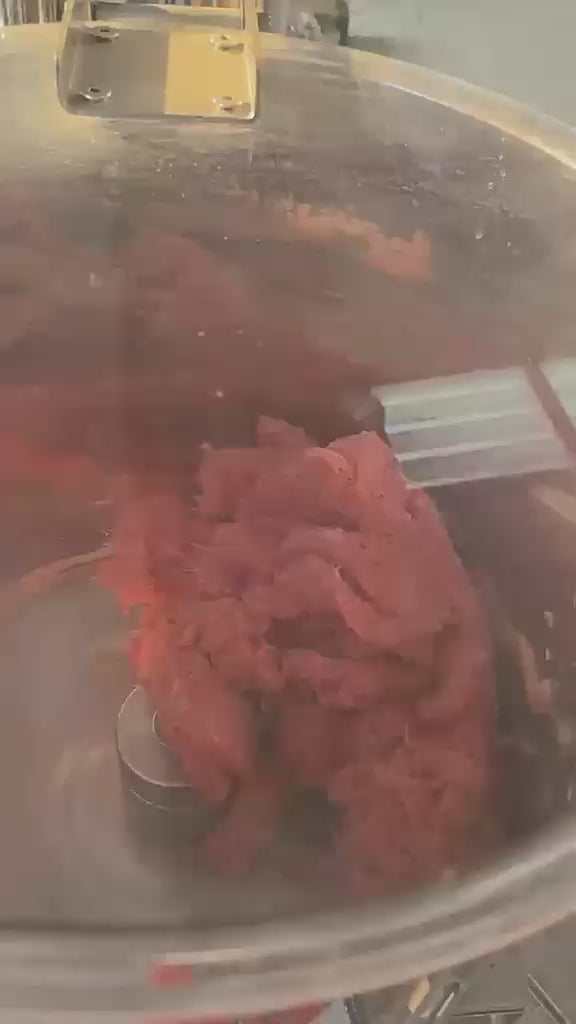

| Hopper capacity | 30 L |
| Patty diameter | 28–120 mm |
| Adjustable patty thickness | 8–20 mm |
| Air pressure | 6 bar |
| Power / voltage | 0.55 kW / 380 V; 0.75 kW / 220 V or 110 V |
| Mesh belt width | 130 mm |
| Dimensions (L × W × H) | 860 × 600 × 1400 mm |
| Machine weight | 100 kg |
Actual production output depends on the ingredient mixture, mold, patty size and operating conditions.
Applications
Suitable mixtures include beef, pork, chicken, fish paste, potato and vegetable mixtures, and plant-based patty ingredients. Product results depend on formulation and mold selection.
Before Ordering
Please confirm your ingredient mixture, required shape, diameter and thickness, electrical voltage and phase, compressed-air supply, destination and quantity. Mold inclusion, air compressor inclusion, freight and customization should be confirmed with KONBRIT before ordering.
FAQ
Can this machine form different shapes?
Yes. Interchangeable forming molds support different shapes and sizes. Confirm which molds are included and which require a separate order.
Does the machine require compressed air?
The supplied specification lists an operating air pressure of 6 bar. Confirm the air-supply requirements and compressor arrangement before installation.
Which electrical versions are available?
The supplied specification lists 0.55 kW at 380 V and 0.75 kW at 220 V or 110 V. Confirm voltage, phase, frequency and plug requirements before ordering.
Specifications & Build Quality
At KONBRIT FOOD MACHINERY, we build our commercial equipment to meet strict global food-safety and industrial standards.
• Food-Grade 304 Stainless Steel: The entire frame, dough-feeding systems, and all contact parts are constructed from heavy-duty 304 food-grade stainless steel to prevent rust, ensure sanitation, and allow easy wash-down.
• CE Certified Components: All electrical motors, control panels, and PLC circuits are CE certified for industrial compliance and safety.
• Custom Molds & Configurations: Our molds are fully customizable. We can adjust the shapes, sizes (from small ravioli to giant empanadas), and patterns to fit your exact pastry or wrapper requirements.
• Pre-Shipping Rigorous Testing: Every single machine undergoes a continuous 48-hour empty and load test in our factory before being crated, ensuring it is 100% plug-and-play when it arrives at your facility.
Shipping & Export Packaging
Due to the heavy weight and industrial size of our food machinery, shipping is carefully coordinated to guarantee safe global delivery.
• Export-Grade Plywood Crate: All machinery is shipped inside a heavy-duty, fully-enclosed plywood wooden crate. This packaging is completely fumigation-free, moisture-proof, and shock-resistant to withstand sea and road transit.
• Logistics Options: We support various global freight terms, including Sea Freight (CIF / DDP / FOB) directly from main ports in China (such as Qingdao, Ningbo, or Shanghai) to your address, and Air Express for smaller spare parts.
• Estimated Lead Time: Production & customization takes 7 - 15 business days (depending on mold customizations). Sea transit takes approximately 20 - 35 days to North America and Europe, and 15 - 25 days to Southeast Asia and Australia.
Warranty & Technical Support
Purchasing industrial machinery requires reliable after-sales security. KONBRIT provides a comprehensive support ecosystem for your business:
• 1-Year Global Warranty: We cover all major functional parts (including the main motor, PLC controller, dough rollers, and conveyor belts) under our 1-Year manufacturing warranty.
• Free Express Parts Delivery: If a component becomes defective within the first year, we will ship the replacement part directly to your business via air express (DHL/FedEx) at no cost.
• Lifetime Video Engineering Support: You are never left alone. We provide comprehensive setup manuals and video guides. If you need assistance with machine calibration, mold swapping, or troubleshooting, our technical team will coordinate live video support sessions with your staff.
• Custom Mold Spare Supply: We keep record files of your custom molds. You can order replacement molds or additional shape designs at cost price at any time.
